Applicable Push Button Layout |
|

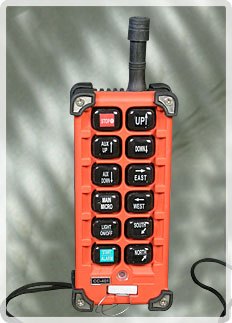

| Model : CC401 / CC402 |
|
| Application : |
| 1. Four Motion EOT Cranes |
| 2. Four Motion EOT Cranes with Main/Creep Speed in One/All Motion |
| 3. Four Motion EOT Crane iwth Magnet Operations |
| 4. Level Luffing Crane |
| 5. Crane with Dual Trolleys used in papper mills. |
|
| Functions : |
| Main Power |
: |
Start / Stop |
| Main Hoist |
: |
Up/Down |
| Aux. Hoist |
: |
Up/Down |
| Cross Travel |
: |
Left/Right |
| Long Travel |
: |
Forward/Reverse |
| Alarm/Hooter |
: |
Yes |
| Emergency Stop |
: |
Yes |
| Bridge Light |
: |
Yes |
| Main/Micro Speed Selection : Yes |
| |
| Model CC402 is with two step push buttons in the transmitter. |
| |
|
|
 |
|
