Applicable Push Button Layout |
|

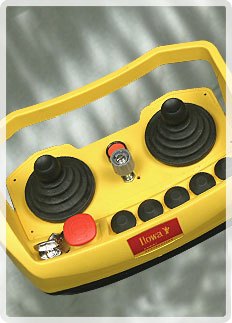

Model : COMBI |
|
| Application : |
| 1) Dual Joystick Type |
| 2) Four Motion EOT Crane |
| 3) Creep Motion in All Crane |
| 4) Tower Crane |
|
| Functions : |
| Main Power |
: |
Start/Stop |
| Hoist |
: |
Up/Down 4-0-4 |
| Aux Hoist |
: |
Up/Down 4-0-4 |
| Cross Travel |
: |
Right/Left 4-0-4 |
| Long Travel |
: |
Forward/Reverse 4-0-4 |
| Creep in All Motions |
: |
Yes |
| Drive Reset |
: |
Yes |
| Hooter / Bell |
: |
Yes |
| Emergency Stop |
: |
Yes |
| Bridge Light |
: |
Yes |
| |
|
|
 |
|
