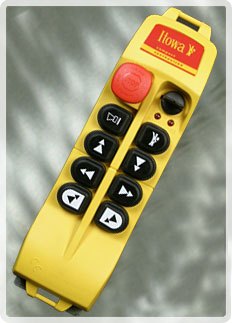

Applicable Push Button Layout |
|
| Model : Compact 8 |
|
| Application : |
| 1) Three Motion EOT Crane |
| 2) Dual Speed in All Motion |
| 3) Tower Crane |
|
| Functions : |
| Main Power |
: |
Start/Stop |
| Hoist |
: |
Up/Down 2-0-2 |
| Cross Travel |
: |
Right/Left 2-0-2 |
| Long Travel |
: |
Forward/Reverse 2-0-2 |
| Hooter/Bell |
: |
Yes |
| Bridge Light |
: |
Yes |
| Emergency Stop |
: |
Yes |
| With Dual Step Push Button in the Transmitter |
| |
|
|
 |
|
