Anticollision Device


Anticollision Device

Supply Voltage : 110/220v AC
Output contact rating : 5A / 10A at 110v AC
Operating Temp. : Upto 70 C
Sensitivity Adjustment : 15% to 100%
Maximum sensing distance : 10 meters
Anticollision Device

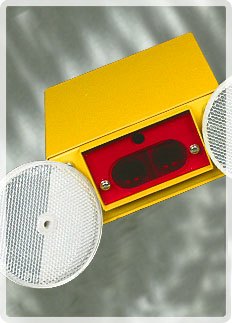

Model : ACD-201

The Anticollision system model ACD-201 is a safety device to avoid to collision of two electric overhead travelling cranes working on the same rails.

The System works on the principle of retro-reflective infrared waves. It consists of an emitter and sensor module and a special reflector. The emitter emits the infrared waves in the direction of the reflector. The reflector reflects these infrared waves back to the sensor. The sensor senses the presence of these reflected infrared waves and activities an alarm signal and stops/reduces the speed of the cranes. Thus if the two cranes are away from each other then the reflected waves will not reach the sensor and the cranes operate normally. The sensing distance is adjustable between 3 to 10 meters. The anti collision system is specially designed for the crane application and is suitable for the continuous duty.

Each set consists of an Emitter/sensor module and a Reflector.

For one pair of cranes two sets of anticollision systems are required.
